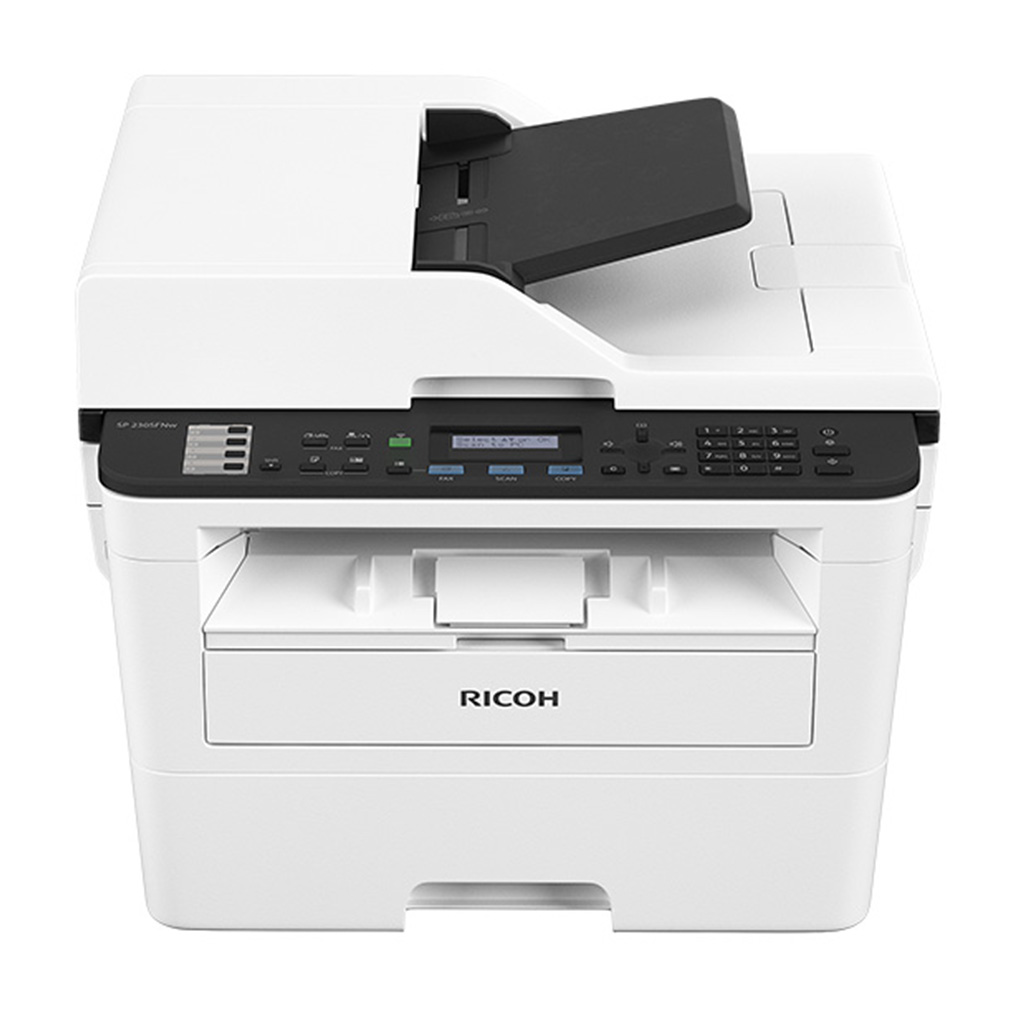

SP 230SFNw A4 black and white MFP

  • Copy, print, scan, and fax
  • Prints up to 30 ppm
  • Mobile printing
  • Quiet operation

A compact workhorse for the busy workplace

The SP 230SFNw is a compact 4-in-1 solution, created to make your work life easier. With fast 30ppm print speed, automatic 2-sided printing and colour scanning as standard, all managed through a simple interface, it’s a low maintenance printer that delivers fast results. Featuring a separate drum and high yield toner, the SP 230SFNw reduces upkeep spend – offering lower cost per page for added economy. Built with both wired and wireless connectivity, faxing, colour scanning, printing and copying capabilities, you can get the documents you need instantly, in high quality.

  1. Compact and Robust
    Compact in size and provide quiet operation, leading to greater efficiency and user productivity especially in smaller office environments
  2. Excellent productivity
    High-quality 1,200 x 1,200 dpi resolution
  3. Easy to use
    Easy mobile printing via Wi-Fi Direct, Mopria®, and AirPrint® support
  4. Economical and eco-friendly
    Low Typical Electricity Consumption (TEC) and Energy Star v2.0 certified
Download PDF brochure

Request a quote and empower your digital workplace with us

Whatever your business needs there’s a Ricoh specialist ready to help create the ideal solution to improve your work life. Hit the ‘Request a quote’ button, complete the form with your details and we’ll contact you within 24 hours to discuss your requirements.

  • Copy, print, scan, and fax
  • Prints up to 30 ppm
  • Mobile printing
  • Quiet operation

Specifications

Functions
Copy, print, scan, fax
Colour
No
Memory - standard
256 MB
Operation panel
2-line LCD
Physical dimensions (WxDxH)—mainframe
410 x 399 x 319 mm
Weight—mainframe
11.8 kg or less
Standard input capacity (sheets)
251
Maximum input capacity (sheets)
251
Standard output capacity (sheets)
120
Maximum output capacity (sheets)
120
Paper input configuration - standard
250-sheet paper tray, 1-sheet bypass tray, 50-sheet ADF
Paper output configuration - standard
120-sheet face-down output tray
Supported media
Thin paper, plain paper, thick paper, thicker paper, recycled, bond paper, label, envelope
Maximum paper size
A4
Media weight (g/m2)
60–230
Interfaces - standard
USB 2.0
10Base-T/100Base-Tx (Ethernet)
IEEE 802.11b/g/n (Wireless LAN)
Network protocols - standard
TCP/IP, IPv4
Copy speed
A4 SEF, single document, multiple copies
30 cpm
First copy time

Platen glass
10 seconds or less

ADF
11 seconds or less

Copy resolution
1,200 x 1,200 dpi—platen glass
600 x 600 dpi—ADF
Zoom range
25%–400% in 1% steps
Enlargement ratios
104%, 141%, 200%,
Reduction ratios
97%, 94%, 91%, 85%, 83%, 78%,70%, 50%
Duplex copy
Yes
ID card copy
Supported
Print speed black and white
30 ppm—single-sided
7.5 ppm—duplex
First print time
8.5 seconds or less—from Ready Mode, 17.5 seconds or less—from Sleep Mode
Print resolution
600 x 600 dpi—default, 300 x 300 dpi, 1,200 x 1,200 dpi, 2,400 x 600 dpi
Printer drivers
GDI
Duplex printing
Yes
Mobile printing
Yes
Scan speed

Black and white, A4, 200 dpi, 300 dpi
22.5 ipm
36 mm/second—600 x 600 dpi

Colour, A4, 200 dpi, 300 dpi
7.5 ipm

Scan methods
Scan to folders, Scan to searchable PDF, TWAIN scanning
Colour scanning
Supported
Scan resolution
100 dpi, 200 dpi—default, 300 dpi, 600 dpi
Scan to file types

Single- and multi-page TIFF
Single-page JPEG
Single- and multi-page PDF
Single- and multi-page high compression PDF
Single-and multi-page PDF/A

Scan to folder
Security
Secure PDF

Resolution
100 dpi, 150 dpi, 200 dpi (default), 300 dpi, 400 dpi, 600 dpi
TWAIN scanning
Scan mode
Auto, text, photo, receipt

Scan speed—A4, 200 dpi, 300 dpi
22.5 ipm—black and white
7.5 ipm—colour

Scan resolution
1,200 x 1,200 dpi—platen glass
600 x 600 dpi—ADF

Image adjustment
Brightness, contrast

Supported operating systems
Windows Server 2008, Windows 7, Windows 8.1, Windows 10, Windows Server 2012/R2, Windows Server 2016
Fax types
Super G3
Fax circuit
PSTN, PBX
Fax modem speed
33.6 Kbps with automatic shift down
Fax compression methods
MH, MR, MMR, JBIG
Fax resolution
Horizontal
203 dpi—8 dots/mm—standard, fine, super fine, photo

Vertical
98 dpi—3.85 dots/mm—standard
196 dpi—7.7 dots/mm—fine, photo
392 dpi—15.4 dots/mm—super fine
G3 fax transmission speed
Approximately 2.5 seconds
Fax SAF memory capacity
16 MB
Encryption
SSL communication, SMTP over SSL/TLS, SNMP v3, Encrypted PDF Mode, Wireless LAN—WEP, WPA, WPA2
Windows
Windows Server 2008
Windows Server 2008 R2
Windows 7
Windows 8.1
Windows Server 2012
WIndows Server 2012 R2
Windows 10
Windows Server 2016
Macintosh
OS X Native—10.11 or later
Power source
220–240 V, 50/60 Hz, 4.6 Amps or less
Power consumption
1,104 W—maximum power
440 W—operating power
42 W or less—Ready Mode
6.2 W or less—Energy Saver Mode (Sleep Mode)
Typical Electricity Consumption (TEC)
1,232 Wh
Warm-up time
28 seconds or less
Power saving mode

1 minute default shift time—Energy Saver Mode (Sleep Mode)

Recovery time

From Energy Saver Mode (Sleep Mode)
11 seconds or less

Green labels
Blue Angel Mark (BAM)
