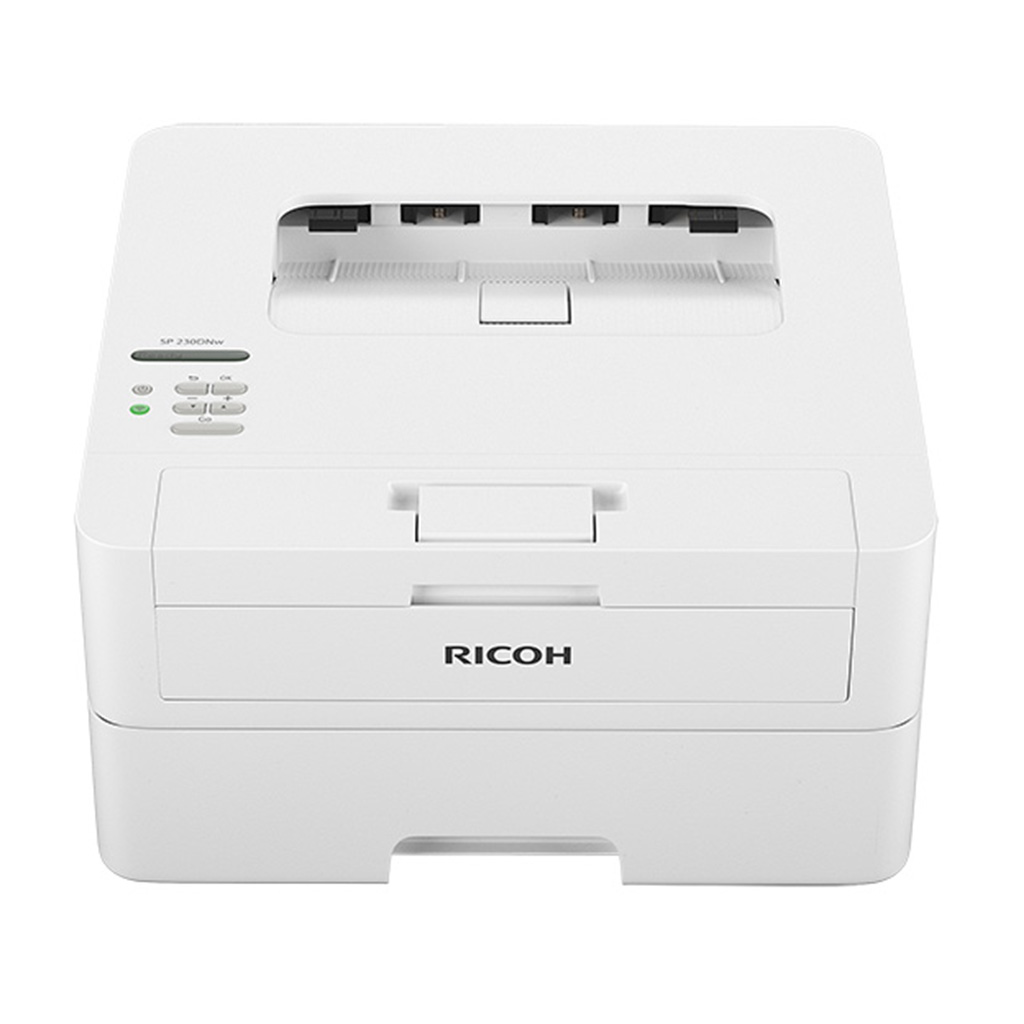

SP 230DNw A4 black and white printer

Prints up to 30 ppm
1,200 x 1,200 dpi
Mobile printing
Quiet operation

A compact workhorse for the busy workplace

The SP 230DNw makes printing simple - with easy set-up, a high capacity paper tray, wireless connectivity and a print speed of 30ppm. And you can work in an environment that suits you. The SP 230DNw’s compact size is perfect for smaller office spaces. Thanks to its low noise levels you can stay fully focused on the task in hand and get even more work done in less time. Complete with a separate toner and high capacity drum, you can also reduce overheads.

Compact and Robust
Compact in size and provide quiet operation, leading to greater efficiency and user productivity especially in smaller office environments
Excellent productivity
High-quality 1,200 x 1,200 dpi resolution
Easy to use
Easy mobile printing via Wi-Fi Direct, Mopria^®, and AirPrint^® support
Economical and eco-friendly
Low Typical Electricity Consumption (TEC) and Energy Star v2.0 certified

Download PDF brochure

Specifications

Functions: Print
Colour: No
Memory - standard: 128 MB
Operation panel: 1-line LCD

Physical dimensions (WxDxH)—mainframe: 356 x 360 x 183 mm
Weight—mainframe: 7.3 kg or less

Standard input capacity (sheets): 251
Maximum input capacity (sheets): 251
Standard output capacity (sheets): 150
Maximum output capacity (sheets): 150
Paper input configuration - standard: 250-sheet paper tray, 1-sheet bypass tray
Paper output configuration - standard: 150-sheet face-down output tray
Supported media: Thin paper, plain paper, thick paper, thicker paper, recycled, bond paper, label, envelope
Maximum paper size: A4
Media weight (g/m2): 60–230

Interfaces - standard: USB 2.0
10Base-T/100Base-Tx (Ethernet)
IEEE 802.11b/g/n (Wireless LAN)
Network protocols - standard: TCP/IP, IPv4

Print speed black and white: 30 ppm—single-sided
7.5 ppm—duplex
First print time: 8.5 seconds or less—from Ready Mode, 17.5 seconds or less—from Sleep Mode
Print resolution: 600 x 600 dpi—default, 300 x 300 dpi, 1,200 x 1,200 dpi, 2,400 x 600 dpi
Printer drivers: GDI
Duplex printing: Yes
Mobile printing: Yes

Encryption: SNMP v3, Encrypted PDF Mode, Wireless LAN—WEP, WPA, WPA2

Windows: Windows Server 2008
Windows Server 2008 R2
Windows 7
Windows 8.1
Windows Server 2012
WIndows Server 2012 R2
Windows 10
Windows Server 2016
Macintosh: OS X Native—10.11 or later

Power source: 220–240 V, 50/60 Hz, 4.6 Amps or less
Power consumption: 1,104 W—maximum power
460 W—operating power
42 W or less—Ready Mode
6 W or less—Energy Saver Mode (Sleep Mode)
Typical Electricity Consumption (TEC): 1,180 Wh
Warm-up time: 28 seconds or less
Power saving mode: 1 minute default shift time—Energy Saver Mode (Sleep Mode)
Recovery time: From Energy Saver Mode (Sleep Mode)
11 seconds or less
Green labels: Blue Angel Mark (BAM)
