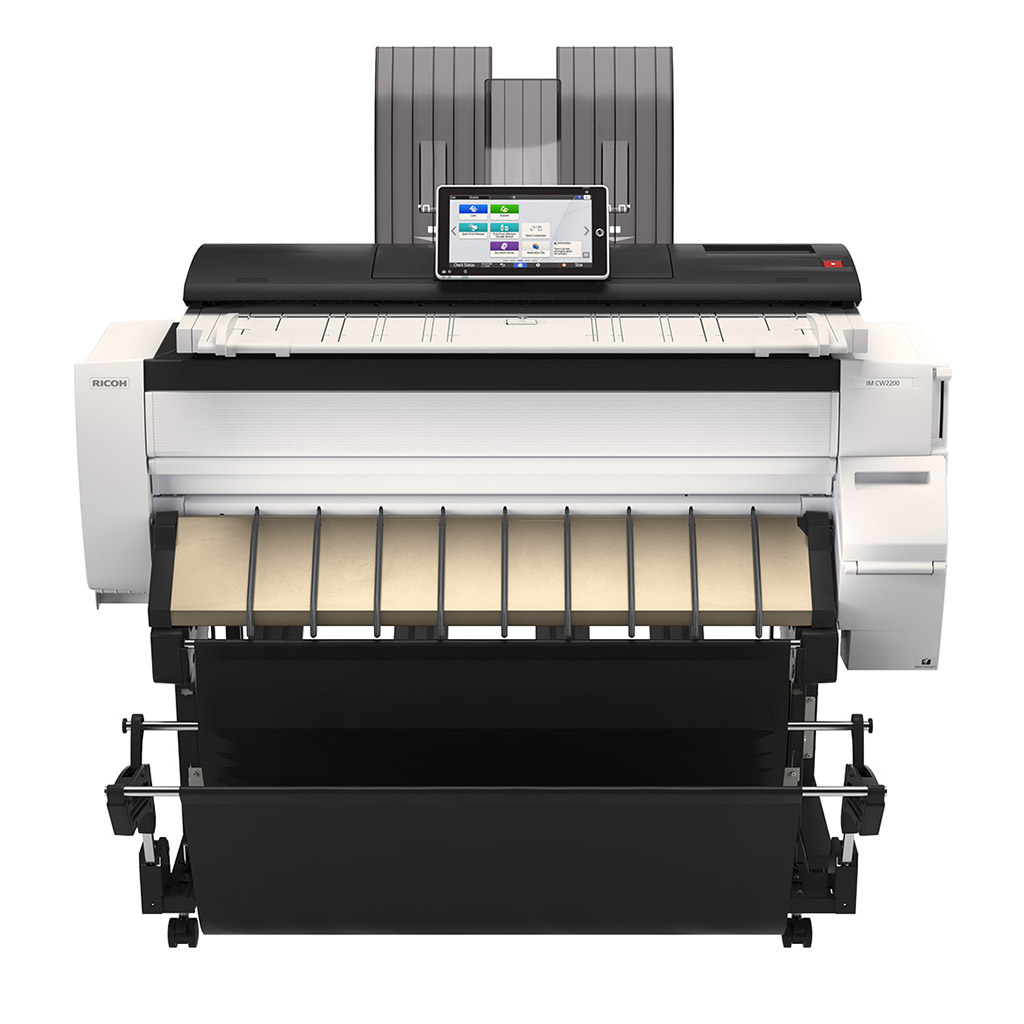

IM CW2200

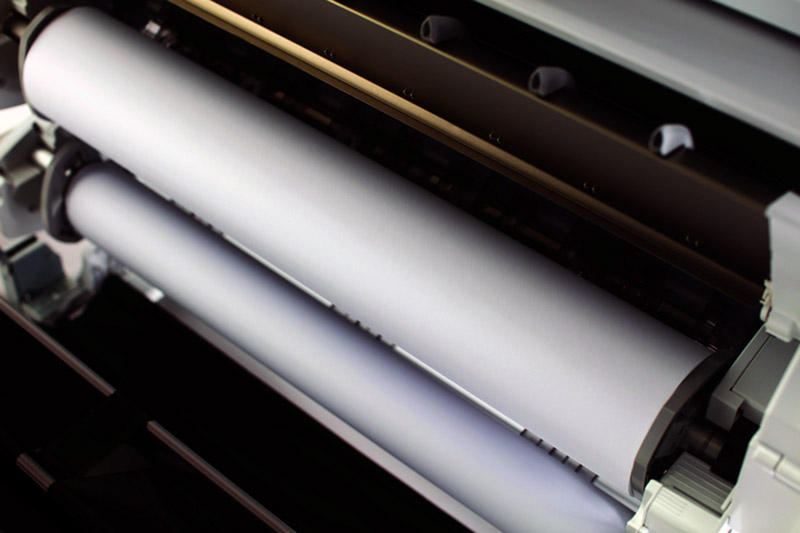

Roll Feeder Unit RU6550

Increases the roll capacity from standard 1 roll to 2 rolls total.

Number of paper rolls: 1 roll
Paper roll size: maximum 914 x 15,000 mm; minimum 210 x 279.4 mm
Paper roll width: 297–914 mm
Paper roll length: 150,000 mm
Paper roll diameter: 176 mm
Dimensions (W x H x D): 1,108 x 398 x 432 mm
Weight: 14.5 kg

Roll Holder Type M23

Attached to both ends of a paper roll to provide additional flange inserts that grip the paper roll and mount it in the paper roll tray.

Dimensions (W x H x D): 1,049 x 160 x 160 mm
Weight: 1.5 kg or less

File Format Converter Type M23
Allows users to save copy and print jobs stored on the document server to a computer.
OCR Unit Type M13
Scans and creates editable text files from hardcopy originals via Optical Character Recognition. Enables the creation of searchable PDF documents at the MFP.
NFC Card Reader Type M23
Ricoh card reader that supports authentication via Near Field Communication (NFC) technology. It can be used with Ricoh devices that are equipped with the 10.1" Smart Operation Panel that have standard authentication embedded.
DataOverwriteSecurity Unit Type M19
Erases the temporary data on the hard disk drive. For customers who require ISO 15408 certification prior to the printer or MFP system being IEEE 2600.1 certified.
IEEE 802.11a/g/n Interface Unit Type M19
Enables WiFi connectivity and wireless printing.

Standard inclusions

  • 10.1吋智慧操作面板
  • 10張原稿疊紙機
  • 320 GB 硬碟
  • 4 GB RAM
  • 集成彩色打印、影印和掃描

Current configuration

IM CW2200
1384 mm x 675 mm x 1220 mm (W x D x H)
120 kg
Selected Options:
