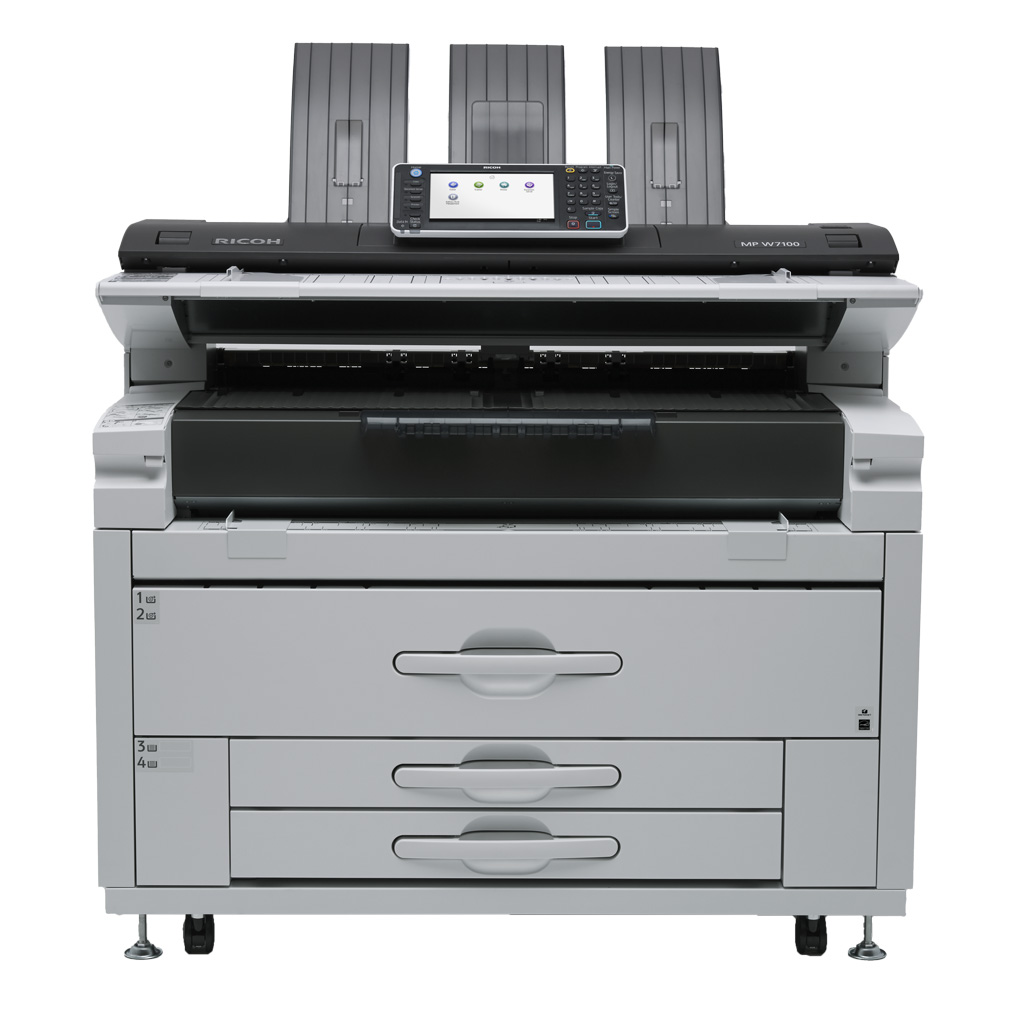

The MP W7100SP is a wide format MFP with an A1 copy speed of 10 copies per minute (cpm). It comes with integrated print, copy, and scan functionality, and provides an impressive 600 dpi print image quality.
The device offers maximum productivity and high reliability for the specific wide format market, primarily targeting Architecture, Engineering, and Construction (AEC), Geographic Information System (GIS), and manufacturing companies.
The MP W7100SP is also ideal for mid- and high-volume customers within the Print For Pay (PFP) and Central Reprographic Department (CRD) segments.
Paper Cassette CT6510
Optional 2-tray paper feed unit that increases the paper capacity of the device.
Capacity: 500 (2 x 250) sheets
Note: Measured with 64–81 g/m2 paper weight.
Paper size: A24–A2
Paper weight: 64–110 g/m2
Dimensions (W x D x H): 1,014 x 644 x 236 mm
Weight: 38 kg or less
Holds up to 100 originals on the front of the device for easy feeding of originals when copying or scanning.
Dimensions (W x D x H): 244 × 135 x 528 mm
Weight: 2.0 kg
Roll Feeder Unit RU6540
Increases the roll capacity from standard 2 rolls to 4 rolls total.
Number of paper rolls: 2 rolls
Paper roll size:
914 mm x 15,000 mm—for MP W7100SP
914 mm x 30,000 mm—for MP W8140SP
210 x 210 mm
Paper roll width: 210, 257, 297, 364, 420, 440, 490, 515, 594, 620, 625, 660, 680, 707, 728, 800, 841, 880, 914 mm
Paper roll length: 200 metres
Paper position: Centre
Paper roll diameter: 175 mm
Dimensions (W x H x D): 1,124 x 369 x 236 mm
Weight: 36 kg or less
Roll Holder Type A
Attached to both ends of a paper roll to provide additional flange inserts that grip the paper roll and mount it in the paper roll tray.
Dimensions (W x D x H): 1,049 x 160 × 160 mm
Weight: 1.5 kg
Original Tray Type G
Multi Stacker Type 7140
Can be attached either at the front or rear of the device to stack a large number of copies or originals.
Dimensions (W x D x H) 788 x 790 x 890 mm
Weight: 16.4 kg
Browser Unit Type M14
Enables to display information obtained from server applications on the operation panel of network devices as web pages. The device browser enables a server application and device to communicate, allowing scanned data to be sent to the server application, where the user can perform various operations.
OCR Unit Type M2
Software that works with Ricoh wide format devices to help manage the printing and copying of large drawings, plans, maps, and other technical documents.
PrintCopy Tool Option Type D 2019
A utility that enables centralised management of vast amounts of references and drawings. Allows for use of DWG, DXF, and DWF formats.
SD Card for NetWare printing Type M14
Optional Counter Interface Unit Type M12
Used with external third party counting devices for accounting and charge-back purposes.
DataOverwriteSecurity Unit Type H
IEEE 802.11a/g/n Interface Unit Type M2
- 9" tiltable colour touch screen
- 2-roll feeder + Bypass tray
- 320 GB HDD
- 2.5 GB RAM
- Integrated printer and scanner
- 1,200 dpi colour scanning
